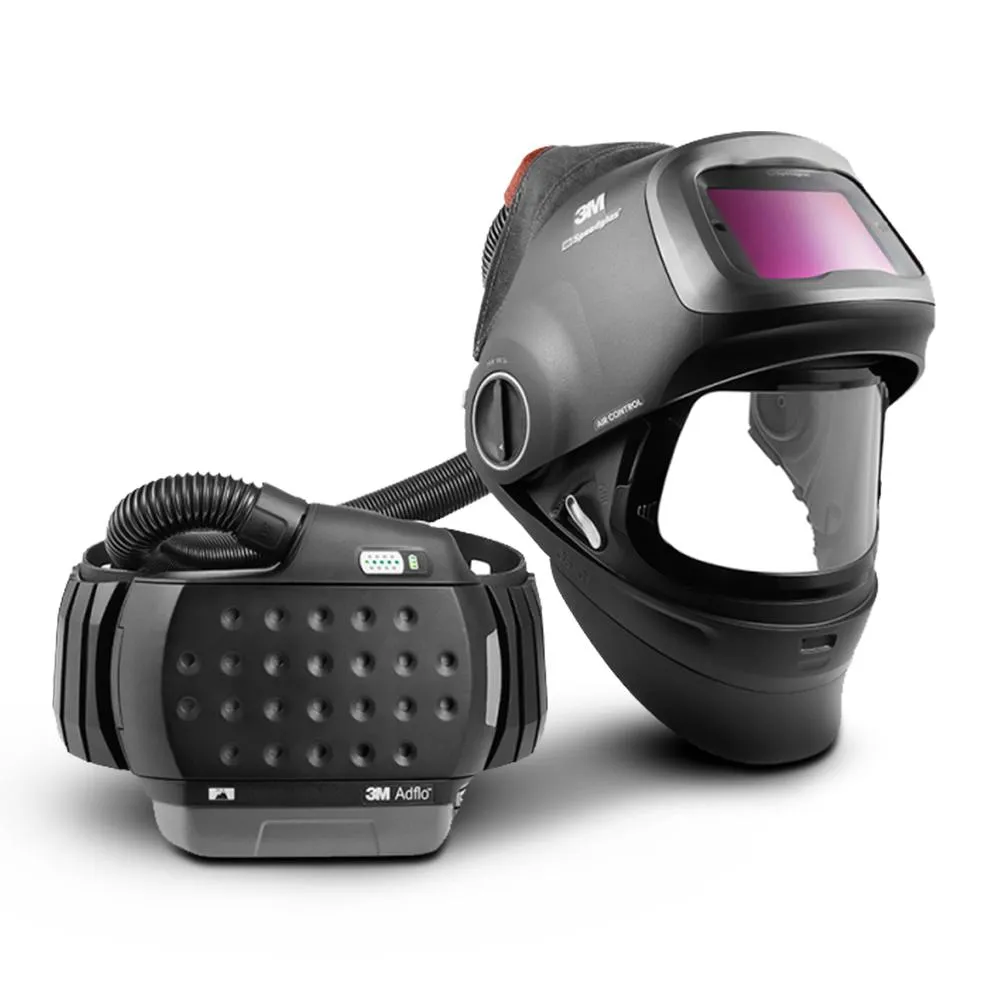

3M™ Adflo™ Powered Air Purifying Respirator System with 3M™ Speedglas™ G5-01 Series Welding Helmet Kit

3M™ Adflo™ Powered Air Purifying Respirator System with 3M™ Speedglas™ G5-01 Series Welding Helmet

The 3M™ Adflo™ Powered Air Purifying Respirator System with the 3M™ Speedglas™ G5-01 Series Welding Helmet provides all of the benefits of our G5-01 series welding helmet with our convenient Adflo™ Powered Air Purifying Respirator system.

For workers in heavy-duty environments, the 3M™ Adflo™ Powered Air Purifying Respirator with Speedglas™ G5-01 Series Heavy-Duty Welding Helmet system provides high-efficiency particulate respiratory protection for welders in a robust yet compact design with ergonomic, adjustable head suspension. The flip-front welding shield allows for a clear, wide-view protective visor for grinding and setup. The 3M™ Adflo™ Powered Air Respirator has a high-efficiency particulate filter that can be “stacked” onto an optional 3M™ Adflo™ Filter (not included) for additional protection against certain vapors or a Nuisance Odor Pad Assembly. Audible and visual alarms signal low airflow and low battery charge. Available in two different auto-darkening lens options (VC/TW). G5 Series storage/carry bag is included.

Product Features

• Adjustable air flow distribution
• Attachment system for additional protective accessories
• Class TH3 CE, NPF 500
• APF 1000, APF 25, USA NIOSH
• Flip-up welding helmet suitable for grinding
• Robust solution
• Task light as an accessory, powered by 3M Adflo Battery
• Tack welding comfort mode
• Welding Filter Shades 5, 8-13
• Largest Viewing Area: 104mm x 170mm
• Natural Color Technology
• Eye protectors worn over standard ophthalmic spectacles may transmit impacts thus creating a hazard to the wearer
• Use of this product in applications outside its intended use, such as laser welding/cutting, may result in permanent eye injury and vision loss.

Applications

The product helps protect the wearer’s eyes and face from sparks, spatter, harmful ultraviolet radiation (UV), and infrared radiation (IR) resulting from certain arc gas welding processes. The welding helmet also protects against certain airborne contaminants when used with an approved air delivery unit. The Speedglas heavy-duty welding helmet G5-01 is designed for:  • Most welding processes, such as MMA (Stick), MIG/MAG, TIG, low-amp TIG • Cutting • Grinding

FAQs

How does the weight of the G5-01 compare to other Speedglas helmets?

The Speedglas G5-01 Welding Helmet is the same weight as the Speedglas 9100 FX Air. The weight of the welding helmet (excl. Headband and welding filter) is 665 g. The weight of the welding filter is 206 g. It is designed for rough conditions and has a narrower profile for a better fit. It has a new, improved headband design and an optional, extra-large back head pad for enhanced comfort.

What are the typical differences between the G5-01 Helmet and the 9100 FX Air Helmet?

The upgraded G5-01 helmet now incorporates variable color technology along with an extra dark shade of 14. It has a 15% larger grinding visor and a larger welding lens. The flip-up welding visor is now removable, making it feel lighter in the process. It has a new, optional helmet-mounted task light enabling welders to enter and work in poorly lit spaces, with configurable light intensity. It has Bluetooth connectivity, pairing with your smartphone to use the 3M Connected Equipment App.

Can the G5-01 be purchased without respiratory protection?

No, you can only purchase the G5-01 with either the Adflo powered air respirator or the Versaflo V-500E supplied air regulator. But a similar helmet, the G5-02 is available without respiratory protection.

What type of cover lenses are used with the G5-01?

The inside cover lens is Part No: 528025, and the outside cover lens is Part No: 526000. For the grinding visor plates, use Part Number 613000.

Does the G5-01 have side windows?

No, the G5-01 does not have side windows; instead, it benefits from a larger viewing area and 15% larger clear grinding visor

Can I adjust the brightness on the optional task light?

Yes, you can configure the light intensity using the external button on its side. Press it once to turn it on and then hold in the button to run through the various light levels until you reach the one most suitable for you.

Is the Task Light suitable for heavy-duty welding?

Yes, the Light Task has an outer cover plate to protect it from sparks and spatters. It can be easily removed and replaced if it does become worn over time.

How does the Bluetooth connectivity work?

Just download the 3M Connected Equipment App onto your smartphone and pair through Bluetooth to the G5-01 welding filter. Once connected, you can remotely configure settings on your phone. Adjust dark settings, record your welding helmet maintenance log, review statistics for hours in dark and light states, and instantly access user manuals. You have the option to program up to 10 memory modes through your phone, allowing you to jump between modes with the click of a button.

Can another welder use my lens settings through Bluetooth?

No, the helmet will only connect to one phone at any time

How do you remove the welding visor?

For extended non-welding work, just unscrew the two dials to completely remove the welding visor and reattach the dials again, reducing the helmet weight by up to 36%. All adjustable functions are imprinted on the helmet, and adjustments can be made while wearing the helmet and your gloves.

Based on extensive input from welders working at high amperages that need to grind frequently, the 3M Speedglas Heavy-Duty Welding Helmet G5-01-TW is created to be adaptable to an individual’s needs and situation and is designed for TIG welders. The new 3M Speedglas Heavy-Duty Welding Helmet G5-01-TW has more adjustable features than ever: from the colour as seen through the welding filter to the direction of the airflow and the level of coverage. Supplied with a heavy-duty battery as standard.
