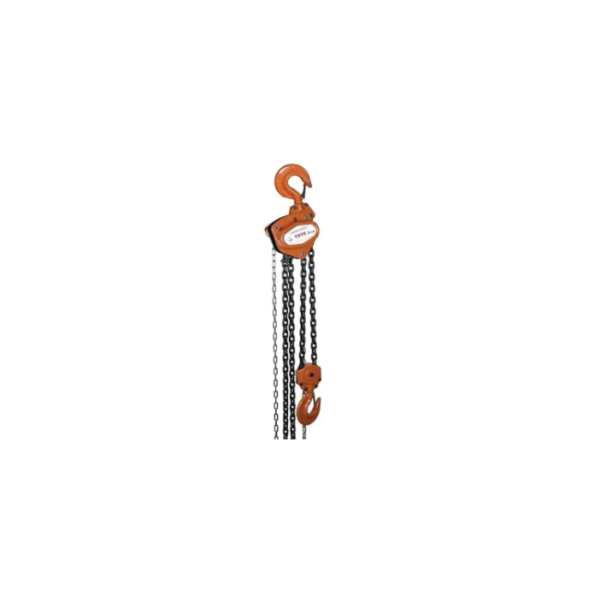

TOYO Manual Chain Block 05 Ton 6 Meter -(70CB5X6)
Engineered for heavy-duty tasks, the TOYO Manual Chain Block delivers unrivaled durability and reliability. This compact design makes it ideal for both lightweight and robust construction. The inclusion of an automatic dual-pawl braking system and double cover protection guarantees reliable performance. Lifting heavy loads becomes effortless thanks to its capacity range from 0.5T to 50T. Equipped with galvanized zinc plating, this chain block is resistant to corrosion. Its safety features include heavy-duty, forged hooks with safety latches and sealed bearings for smooth operation. Compliant with the EC Council Directive 2006/42/EC on machinery safety, this product offers reliable service while meeting stringent safety standards.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Product Description
The TOYO Manual Chain Block, model TCB, is designed for heavy-duty applications, offering exceptional durability and reliability. Its robust steel body and gear casing are engineered to withstand the demanding requirements of construction, mechanical work, and maintenance rigging. The TCB model comes with a wide range of lifting capacities, from 500 kg to 50,000 kg, using high-quality Grade 80 alloy steel load chains. Incorporating advanced Japanese design and technology, the guide plate prevents load chain slippage, offering an advantage over traditional guide rollers. The TOYO hoist features forged, heat-treated steel hooks, with the top hook securing the hoist to an anchor point and the bottom hook lifting the load by simply pulling the hand chain. Manufactured from top-grade components, the TCB chain block ensures maximum durability, rugged performance, and an extended service life. This hoist is an economical and practical solution, delivering efficient and hassle-free operation. Commonly used for lifting tasks, it is also compatible with manual push trolleys. Each unit is proof load tested and comes with a test certificate and user manual for added assurance.
Product Features
The manual chain hoist boasts a compact design, making it perfect for lightweight yet sturdy construction. It includes an automatic dual-pawl braking system and double cover protection to ensure smooth and reliable performance. With a capacity range from 0.5T to 50T, this hoist allows heavy loads to be lifted with minimal effort. Its galvanized zinc plating protects against corrosion, while the heavy-duty forged hooks come equipped with safety latches that meet industry standards. Built with high-quality Grade 80 alloy load chains, sealed bearings, and thick asbestos-free friction discs, this hoist is an excellent choice for construction tasks. It also complies with the EC Council Directive 2006/42/EC on machinery safety.
Characteristics
- Available in capacities ranging from 0.5T to 50T.
- Equipped with an automatic double-pawl braking system for enhanced safety.
- Features double cover protection for added durability.
- Lightweight yet sturdy construction for heavy-duty applications.
- Requires minimal effort to lift maximum loads.
- Fitted with thick, asbestos-free friction discs for reliable performance.
- Fully forged hooks come with standard safety latches.
- Hand chain is galvanized and zinc-plated for long-lasting use.
- Includes sealed bearings for smooth operation.
- Utilizes high-grade Grade 80 alloy load chain, marked with T8 for quality assurance.
- Complies with EC Council Directive 2006/42/EC on machinery safety.
Key Information
Each unit is supplied with full certification, including either a test certificate or an EC Declaration of Conformity, confirming compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. The document outlines a proof test conducted at 1.5 times the rated capacity, along with a light load test at 2% of the rated capacity, both of which surpass the standards required by current regulations.
Specifications
| Model | TCB – 005 | TCB – 010 | TCB – 015 | TCB – 020 | TCB – 030 | TCB – 050 | TCB – 075 | TCB – 100 | TCB – 150 | TCB – 200 | TCB – 300 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 |
| Standard Lift (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Proof Load (t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 11.25 | 15 | 22.5 | 30 | 45 |
| Effort Required to Lift Rated Load (N) | 200(20.5) | 320(32.5) | 360(36.5) | 365(37) | 385(39) | 435(44.3) | 435(44.3) | 435(44.3) | 435(44.3) | 435×2(44.3×2) | 435×2(44.3×2) |
| Load Chain (mm) | 6×18 | 6×18 | 8×24 | 8×24 | 8×24 | 10×30 | 10×30 | 10×30 | 10×30 | 10×30 | 10×30 |
| Strands of Load Chain | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 4 | 8 | 8 | 12 |
| Dimensions (mm) – A | 137.5 | 146.5 | 170 | 170 | 170 | 190.4 | 190 | 190 | 241 | 209 | 312 |
| Dimensions (mm) – B | 137 | 162 | 183 | 194 | 220 | 288 | 377 | 384 | 416 | 625 | 691 |
| Hmin (mm) | 270 | 317 | 399 | 414 | 465 | 636 | 768 | 798 | 918 | 890 | 1380 |
| Dimensions (mm) – D | 35 | 35.5 | 45 | 42.5 | 50 | 64 | 64 | 85 | 85 | 110 | 110 |
| Dimensions (mm) – K | 28 | 26 | 32.5 | 32 | 37 | 46 | 46 | 50 | 61 | 81 | 81 |
| Net Weight (kg) | 8.4 | 11 | 16.2 | 18.5 | 25.6 | 42.8 | 62.5 | 79.5 | 115 | 163.6 | 220 |
| Extra Weight per Meter of Extra Lift (kg) | 1.7 | 1.7 | 2.3 | 2.3 | 3.7 | 5.3 | 7.5 | 9.7 | 13.8 | 19.4 | 28.2 |
Standards
- Meets and exceeds all standards outlined in BS EN 13157: 2004+A1:2009.
Detailed Specifications
| Usually ships in | 3-4 Days |
|---|---|
| Manufacturer | TOYO JAPAN GK |
| Brand | TOYO |
| Price Unit | Each |
| Weight | 51.100 KG |
| Color | Orange |
| Is Featured | No |
