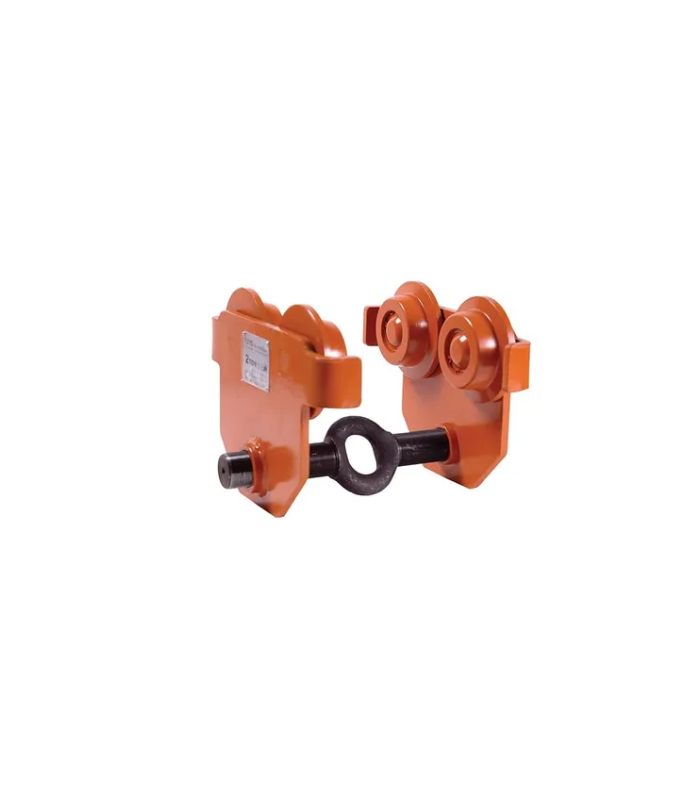

TOYO Manual Plain Trolley 5 Ton -(70PT5)
The TOYO TPT-100 Manual Plain Trolley offers a robust 10-ton capacity, making it perfect for heavy-duty lifting tasks. With adjustable I-beam compatibility (125-203 mm) and a durable design, it ensures smooth operation and long-lasting performance. Ideal for industrial applications, it also comes fully certified for safety compliance. Perfect for tough jobs, built to last!
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Product Description

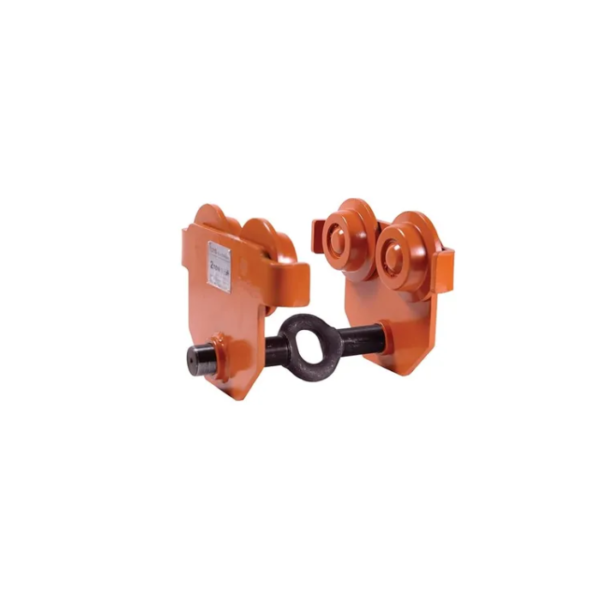

The TOYO Manual Plain Trolley (TPT model) is crafted from high-quality steel, offering superior tensile strength compared to other products in the market. These trolleys provide a cost-effective solution for low-capacity applications. Designed with a robust steel body and gear case, they are built to withstand the demanding conditions of construction, mechanical work, and maintenance rigging. The manual push design allows users to control movement in a horizontal direction along the beam. TOYO hand-push trolleys are compatible with hoists featuring top-hook or lug-mounted suspensions and can operate on both flat and tapered beams. Each unit is proof load tested and comes with a test certificate and user manual. The trolleys meet and exceed the standards set by BS EN 13157: 2004+A1:2009.
Features
- Capacities range from 0.5T to 5T.
- Easily adjustable for different beam widths.
- Maintenance-free design.
Key Information
Each unit is supplied with a certification, either a test certificate or an EC Declaration of Conformity, confirming adherence to the essential health and safety regulations outlined in the Machinery Directive 2006/42/EC. This document specifies a proof load test at 1.5 times the rated capacity, along with a light load test at 2% of the rated capacity, surpassing the current applicable standard requirements.
Technical Parameters (Model: TPT)
| Model | Capacity (t) | Proof Load (t) | I-Beam Width (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TPT-005 | 0.5 | 0.75 | 50-220 | 285 | 198 | 158.0 | 12.5 | 40 | ≈3 | 25 | 5.0 |
| TPT-010 | 1.0 | 1.50 | 58-220 | 300 | 238 | 183.0 | 17.0 | 31 | ≈3 | 29 | 8.8 |
| TPT-020 | 2.0 | 3.00 | 66-220 | 300 | 277 | 208.0 | 20.0 | 31 | ≈3 | 36 | 14.0 |
| TPT-030 | 3.0 | 4.50 | 74-220 | 328 | 324 | 249.0 | 26.0 | 31 | ≈3 | 46 | 23.0 |
| TPT-050 | 5.0 | 7.50 | 90-220 | 354 | 373 | 296.5 | 28.0 | 40 | ≈5 | 52 | 40.0 |
Technical Parameters (Model: TPT)
| Model | Capacity (t) | Proof Load (t) | I-Beam Width (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TPT-100 | 10 | 12.5 | 125-203 | 403 | 455 | 490 | 82 | 36.5 | ≈5 | 1.3 | 86.5 |
Standards
- Compliant with EC Council Directive standards.
Detailed Specifications
| Usually ships in | 6 weeks |
|---|---|
| Manufacturer | TOYO JAPAN GK |
| Brand | TOYO |
| Price Unit | Each |
| Weight | 1.300 KG |
| Is Featured | No |
