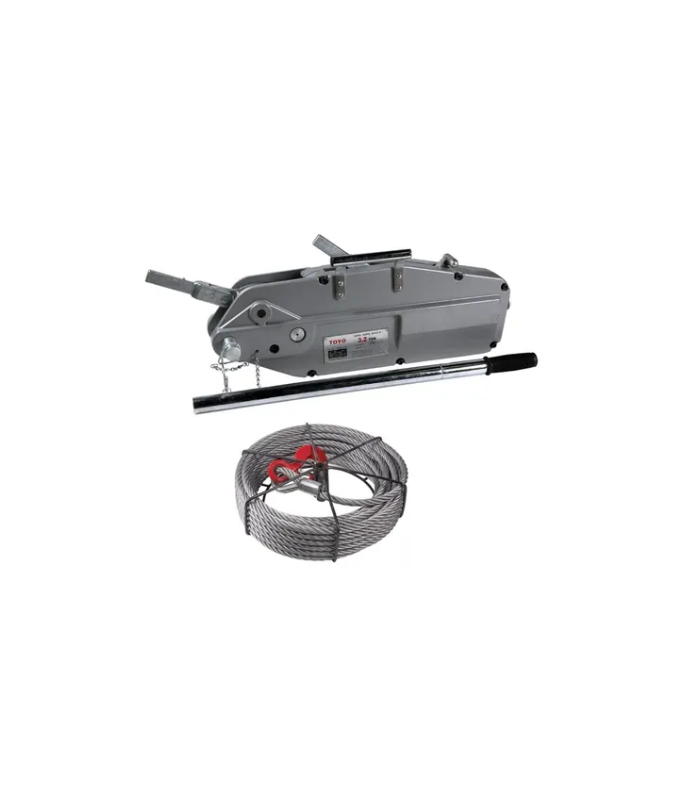

TOYO Wire Rope Winch 3.2 Ton – (70WRW3.2X20)
The TOYO Wire Rope Winch offers exceptional performance for pulling, lifting, and positioning heavy loads over long distances. Its lightweight, forged aluminum body ensures durability and easy handling. Equipped with an extendable handle for maximum pulling force, it’s ideal for professional applications. Fully certified, tested, and compliant with safety standards.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Product Description
The TOYO manual wire rope winch is a top seller, designed for versatility and high performance. This lightweight winch offers a broad range of applications and requires minimal maintenance. Crafted with a forged aluminum body, it is both durable and easy to maneuver. The winch comes with an extendable handle, allowing for maximum pulling power during operation. Ideal for pulling, lowering, and positioning heavy loads over long distances, the winch can be used in various configurations. Perfect for professional use, it operates efficiently with a single lever. Each winch undergoes proof load testing and is provided with a test certificate and user manual for safety and convenience.
Features
- Ideal for pulling, positioning, and lifting loads over long distances based on the wire rope length.
- Designed for lightweight tasks while maintaining durability for tough jobs.
- Extremely easy to install and operate.
Key Information
Each unit is supplied with full certification, including either a test certificate or an EC Declaration of Conformity, confirming it meets the essential health and safety standards outlined in the Machinery Directive 2006/42/EC. The document specifies a proof test conducted at 1.5 times the rated capacity, as well as a light load test at 2% of the rated capacity, surpassing the requirements of the current industry standards.
Specifications
| Model | Rated Lifting Capacity (t) | Rated Pulling Capacity (t) | Rated Forward Handpower (n) | Rated Forward Travel (mm) | Rope Diameter (mm) | Standard Length of Wire Rope (m) | Max Travelling Load (kg) | Net Weight without Cable (kg) | Max Overall Size (mm) A | B | C | D | E | F | G | L1 (cm) | L2 (cm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TWP008 | 0.8 | 1.2 | 343 | ≥52 | 8.3 | 20 | 1200 | 6.7 | 44 | 60 | 101 | 420 | 430 | 172 | 240 | 80 | |
| TWP016 | 1.6 | 2.4 | 400 | ≥55 | 11.0 | 20 | 2400 | 12.3 | 56 | 68 | 120 | 545 | 556 | 200 | 270 | 80 | 120 |
| TWP032 | 3.2 | 4.8 | 441 | ≥28 | 16.0 | 20 | 4800 | 22.2 | 70 | 98 | 150 | 645 | 666 | 227 | 320 | 80 | 120 |
| TWP054 | 5.4 | 8.1 | 745 | ≥0 | 20.0 | 20 | 8000 | 56.5 | 90 | 160 | 200 | 935 | 940 | 300 | 410 | 88 | 135 |
Standards and Certifications
- Complies with the safety standards set by the EC Council Directives.
Detailed Specifications
| Usually ships in | 3-4 Days |
|---|---|
| Manufacturer | TOYO JAPAN GK |
| Brand | TOYO |
| Price Unit | Each |
| Weight | 45.000 KG |
| Color | Metal |
| Is Featured | No |
