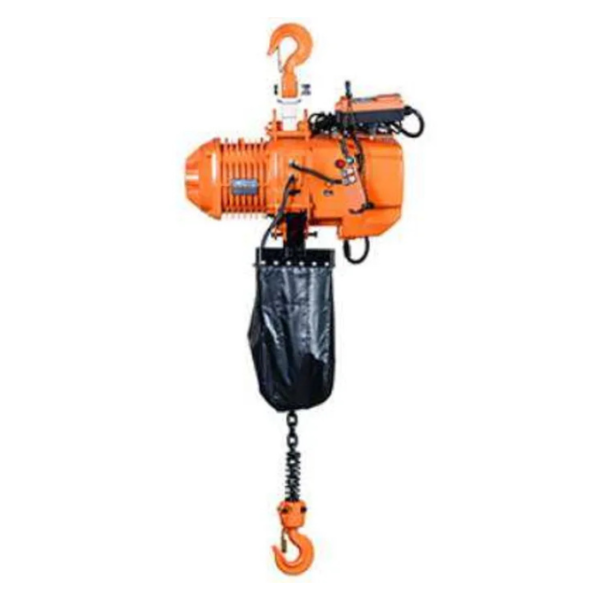

TOYOLIFT Electric Chain Hoist, 1 Ton, 6 Meter – 76ECB-SSDHL-LS
The TOYOLIFT SSDHL 1 Ton Electric Chain Hoist is built for reliable, heavy-duty lifting with a 6-meter reach. Powered by a robust 1.5 kW motor, it offers smooth operation, remote control, and advanced safety features like a load limiter and dual limit switches. Its IP54-rated design ensures durability in demanding environments. Ideal for precise vertical lifting in industrial settings.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Product Description
The TOYOLIFT SSDHL electric chain hoist (model SSDHL01-01S) is built for industrial-grade lifting with a 1.5 kW motor, operating on 3-phase 415V, 50/60Hz power. It offers a lifting speed of 6.6 m/min and features a single-fall chain with a durable chain bag. Equipped with a remote control, load cell, and load limit indicator, it ensures safe and precise operation. Additional safety is provided by integrated upper and lower limit switches, while the IP54-rated housing offers reliable protection. Designed for heavy-duty use, the motor meets M5/2m (ISO/FEM) duty cycles for consistent performance in demanding environments.
Features
-
Rated Capacity: Available from 0.5 Ton up to 50 Ton
-
Control Method: Operated via push button control
-
Lifting Speeds: Supports both single-speed and dual-speed lifting
-
Power Supply: 3-phase, 380V or 415V at 50/60Hz
-
Control Voltage: Options of 24V or 36V for enhanced safety
-
Duty Classification: M5 duty group for intensive industrial use
-
Motor Insulation: Class F motor insulation for thermal protection
-
Protection Rating: IP54 for hoist body, IP65 for control pendant; full hoist and trolley protection (IP55/IP65) available upon request
-
Power Feed System: Suspension-type cable feed, compatible with manual or chain-driven trolleys; includes 6m cable or optional wireless remote (cable and catch not included by default)
-
Push Button Controls: 2-point for single speed, 4-point for dual speed operation
-
Max. Starts per Hour: Rated for up to 150 operations per hour
-
Mounting Options: Can be suspended via hook, manual trolley, or electric trolley
-
Operating Temperature Range: -20°C to 45°C (-4°F to 113°F)
-
Humidity Tolerance: Operates efficiently in environments with up to 85% relative humidity
User Guide
-
This equipment is designed strictly for vertical lifting at a 90-degree angle only.
-
Only trained and competent personnel should operate the hoist, and must first review the user manual and perform necessary inspections.
-
To avoid overheating, allow the hoist adequate cooling time within each hour of operation, especially in warm environments.
-
Ensure the load chain is well-lubricated, rust-free, and properly stored in the chain container with the limit spring and chain stopper securely in place.
Specifications
| Capacity (Ton) | Lifting Speed (m/min) | Motor Power (kW) | Dia of Chain (mm) | No. of Chain Falls | Weight (kg) |
|---|---|---|---|---|---|
| 0.5 | 7.2 | 0.8 | 6.3 | 1 | 52 |
| 1 | 6.6 | 1.5 | 7.1 | 1 | 72 |
| 2 | 6.6 | 3.0 | 10.0 | 1 | 129 |
| 3 | 4.4 | 3.0 | 11.2 | 2 | 150 |
| 5 | 2.7 | 3.0×2 | 11.2 | 2 | 165 |
| 7.5 | 1.8 | 3.0×2 | 11.2 | 3 | 198 |
| 10 | 2.7 | 3.0×2 | 11.2 | 4 | 369 |
| 15 | 1.8 | 3.0×2 | 11.2 | 6 | 412 |
| 20 | 1.4 | 3.0×2 | 11.2 | 8 | 522 |
| 25 | 1.1 | 3.0×2 | 11.2 | 10 | 540 |
| 30 | 0.9 | 3.0×2 | 11.2 | 12 | 820 |
| 50 | 0.55 | 3.0×2 | 11.2 | 20 | 930 |
Standards & Compliance
-
EN ISO 12100:2010 – Outlines general design principles focusing on risk assessment and risk reduction.
-
EN 14492-2:2006 + A1:2009 – Safety requirements specific to cranes and lifting equipment.
-
EN 818-7:2002 + A1:2008 – Specifies safety standards for fine tolerance hoist chains (Grade T: Types T, DAT, and DT) used in lifting operations.
-
EN 349:1993 + A1:2008 – Defines minimum safety gaps to prevent crushing injuries from machinery parts.
Detailed Specifications
| Usually ships in | 4 weeks |
|---|---|
| Manufacturer | TOYOLIFT U.K LTD |
| Brand | TOYOLIFT |
| Price Unit | Each |
| Weight | 75.000 KG |
| Is Featured | No |
